Vacuum Brazing is a material joining process that directly bonds diamond to the blade. Based on the whole industrial technology advantages from raw materials to mature tools, UHD brazed tools, with superhard grits brazed on the base surface can make the abrasives work directly to the subject, more and higher edges improve working efficiency. Meanwhile, mature brazing technology makes the grits tightly combined with the base.
The super-hard tools are safe and reliable, with the efficiency can be improved by 3 times, and working life extend by 100 times compared to traditional resin bond tools. Together with the environmentally friendly advantages of minimal dust & odor and size retaining, the tools are the best choice for metal processing. UHD keeps close cooperation with professional colleges and research institutes, such as Henan University of Technology, ZZSM, Zhengzhou Machinery Research Institute, for developing high-performance products and relative automatic equipment, which can fully play the advantages of super-hard tools and realize green processing and automatic production.
UHD pays great attention to technology research and has got many innovation patents and software copyrights according to the regulation of enterprise intellectual property right management.

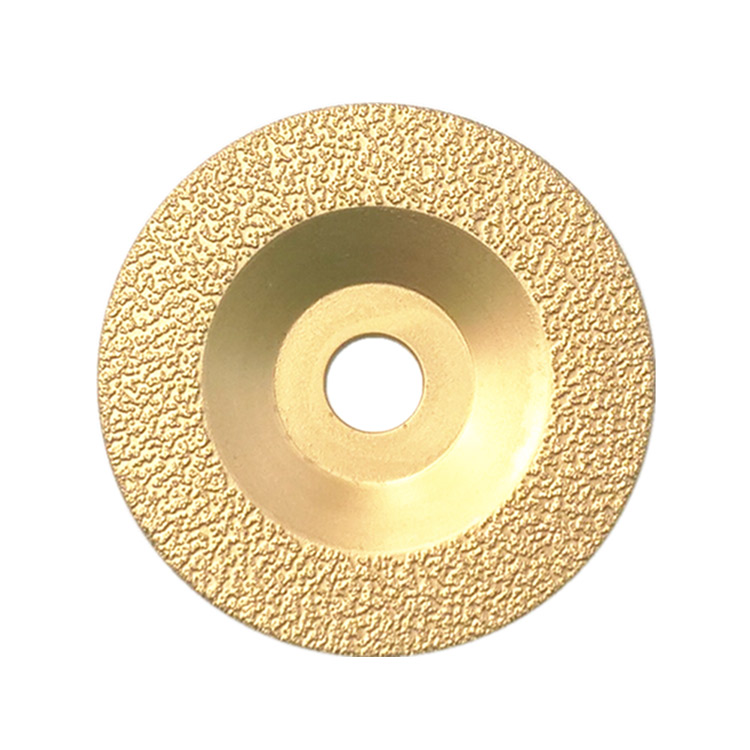

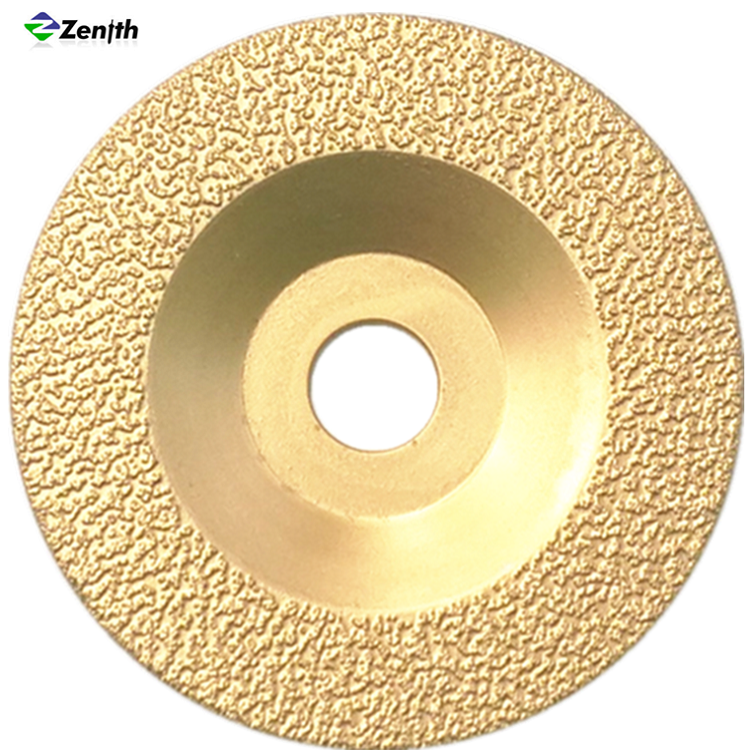

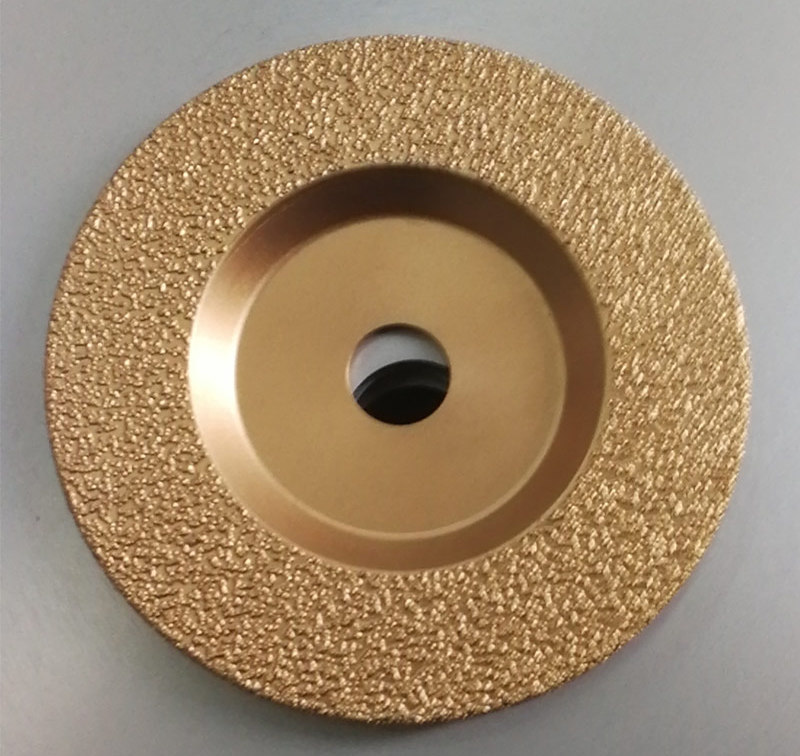

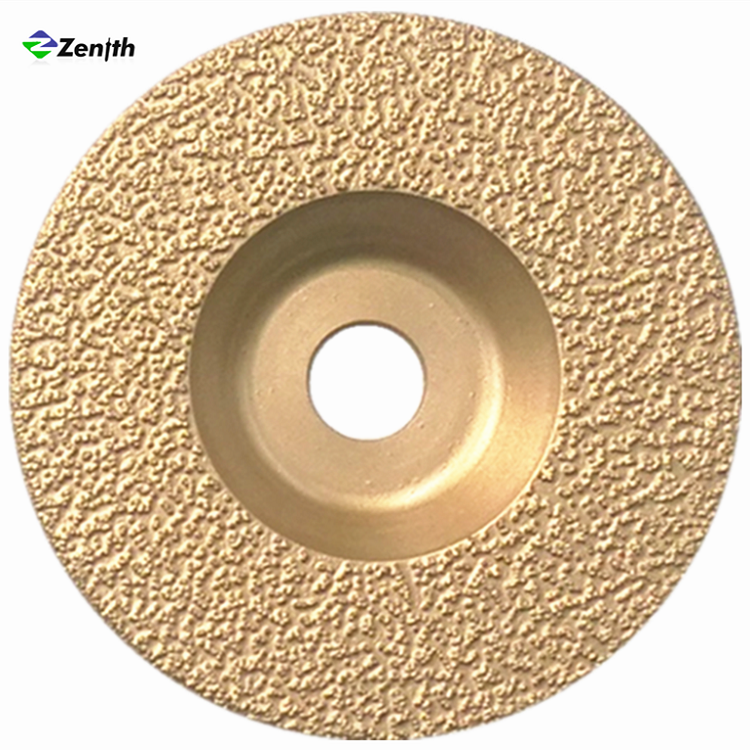

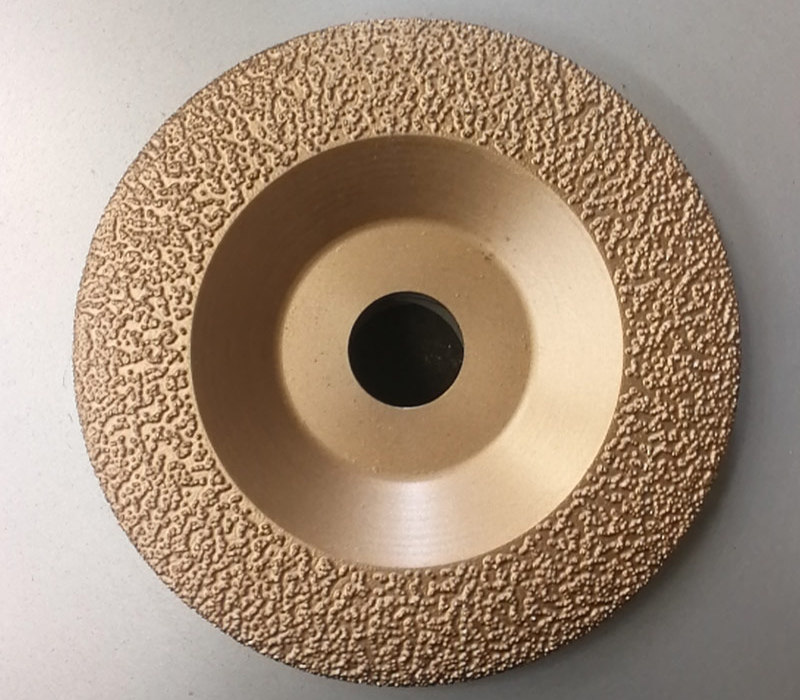

UHD diamond grinding disc adopts 45# steel and turning base body. The product features high sharpness, durability, no dust in the worksite, safety, and no piece breaking, which is the best choice for the foundry enterprise grinding operation.
UHD diamond grinding disc has a full range and the product features high sharpness, durability, no dust in the worksite, safety, and no piece breaking, which is the best choice for the foundry enterprise grinding operation.
ZD100, ZD125, ZD150, ZD180. The customized product is acceptable.
The grinding disc is applicable for gray cast iron, ductile cast rion, small steel parts, hard metal, composite materials products, marble, granite, crystal stone, concrete, etc.
| Specification | Workpiece | Workpiece material | Parameter | Lifetime |
| ZD180 | Auto parts | Gray iron 300 | RPM4000 | 5-7 days |
| Corundum resin disc | Auto parts | Gray iron 300 | RPM4000 | 2-4 hours |
| Specification | Size | RPM | Applicable object |
| ZD180 | 180*3.0*22.23 | 8600 | Cast iron |
| ZD150 | 150*3.0*22.23 | 9200 | Cast iron |
| ZD125 | 125*3.0*22.23 | 10200 | Cast iron |
| ZD100 | 100*3.0*16 | 12000 | Cast iron |
