Brazing technology can realize the chemical metallurgical combination of diamond, bonding agent (brazing alloy material), and the metal matrix interface, with high bonding strength. Due to the high bonding strength on the interface, only a small thickness of the bonding agent is enough to hold the abrasive particles firmly, and the exposed height can reach 70% to 80%, which makes the use of abrasives more fully and greatly improves the life of the tool And processing efficiency. Compared with traditional technology, the allowable maximum cutting edge value of diamond tools can be increased by more than 50%, and the diamond consumption per unit volume of the workpiece material can be reduced by more than half under the condition that the power consumption of the tool does not increase or decrease.
Compared with electroplating tools, it also shows unparalleled advantages. Compared to traditional resin bond tools, UHD brazed tools have higher efficiency, longer work life, higher precision, better safety, and can lighten labor intensity, improve the working environment. With minimal dust & odor and size retaining, the tools are the best choice for metal processing to replace the traditional resin tools and common ceramics abrasives tools.

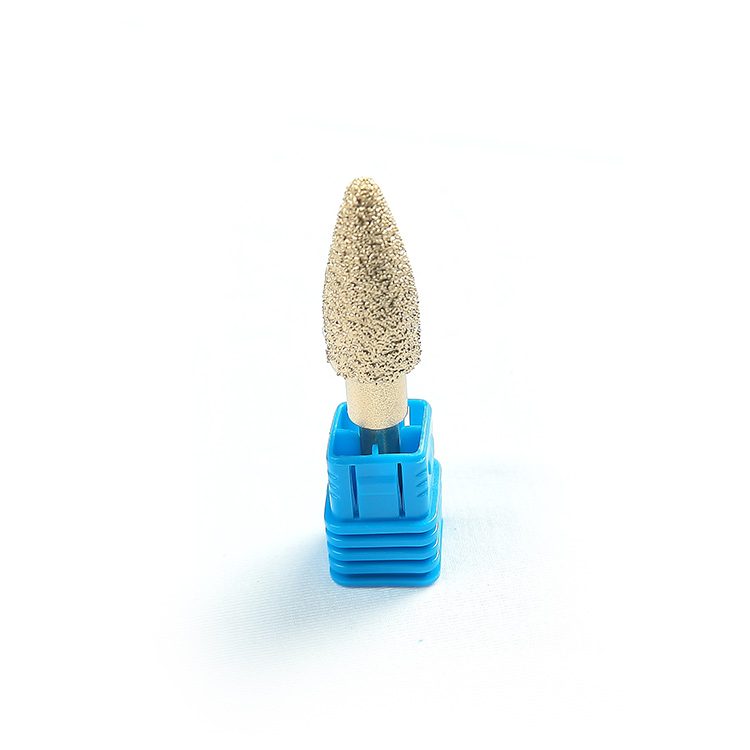

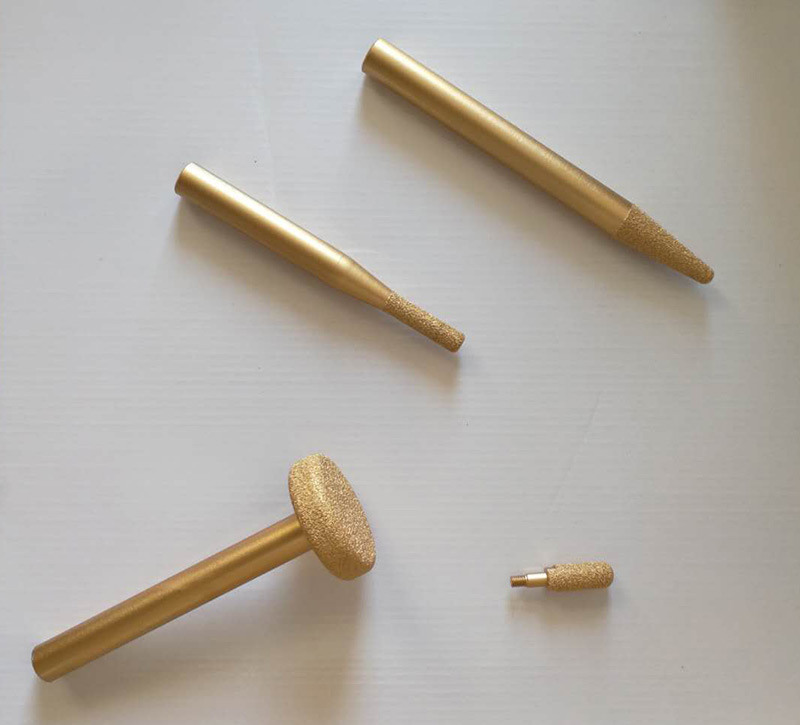

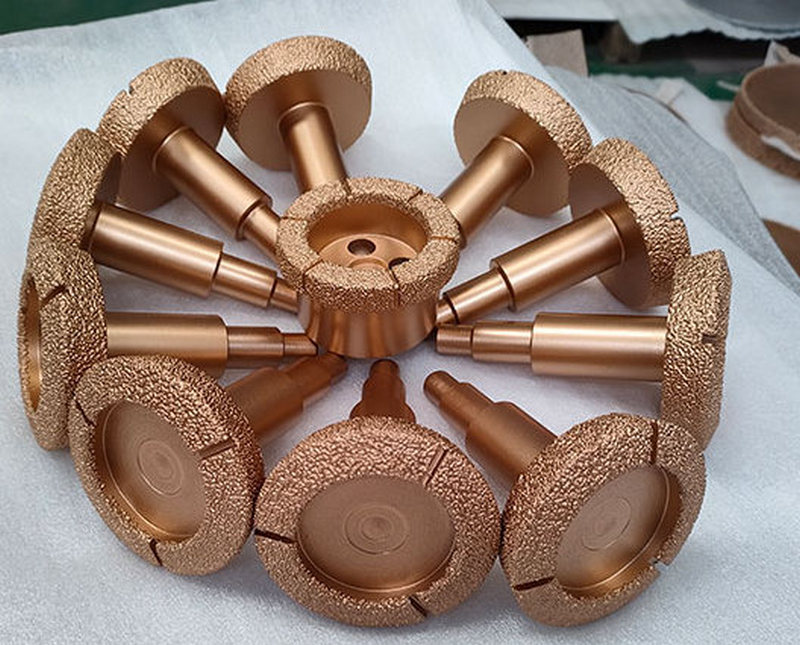

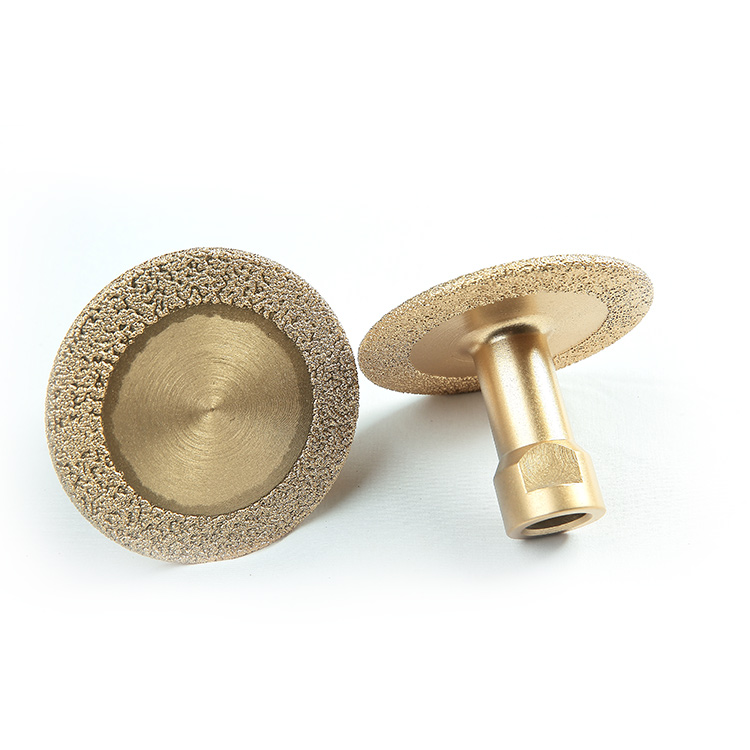

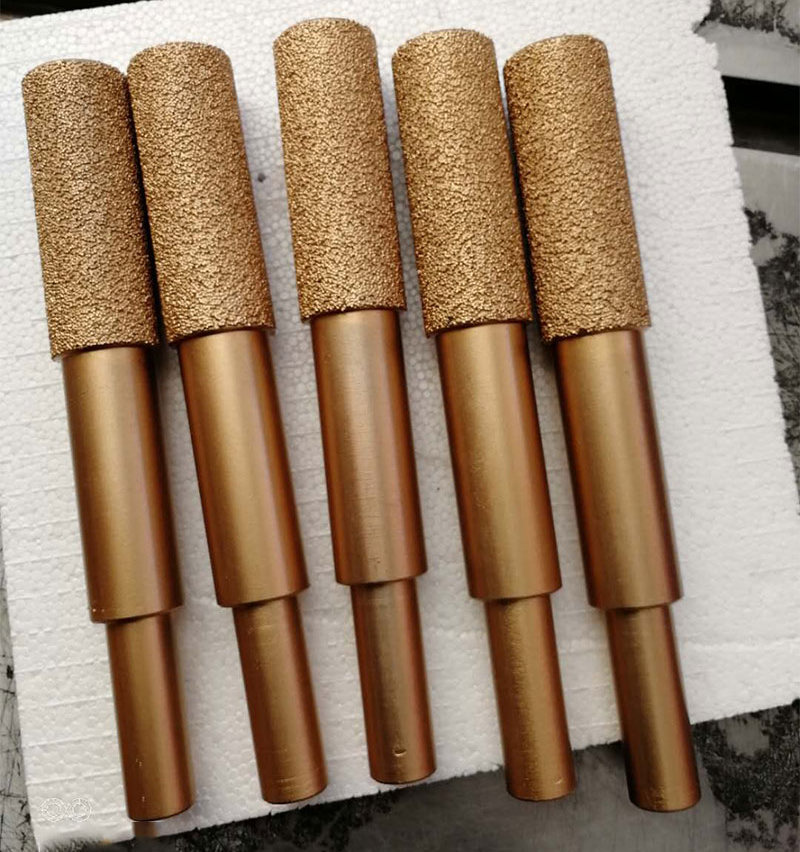

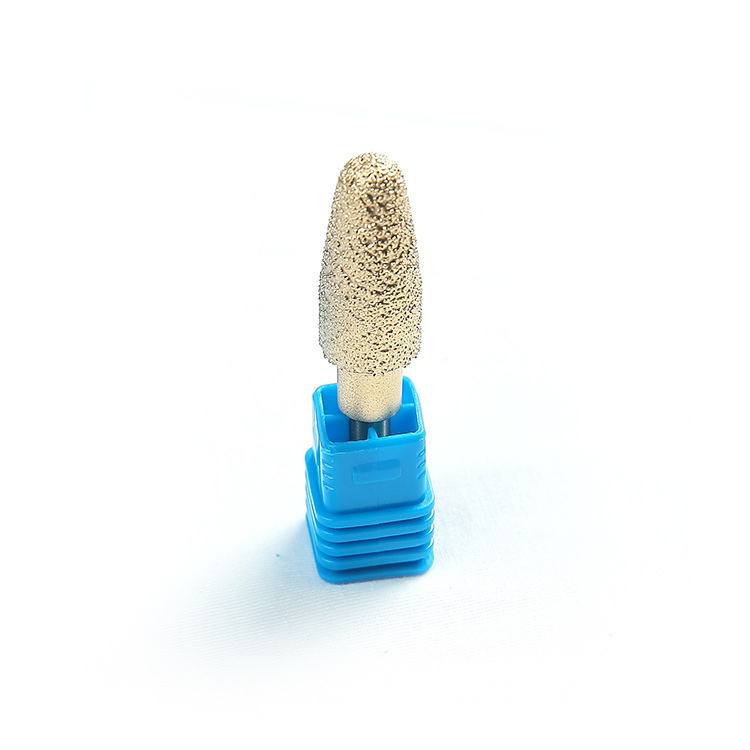

UHD diamond grinding head adopts high-strength steel and turning substrate, and the product has high sharpness, durability, safety, and no-breaking handle, which is mainly used for processing casting edges, holes, and burrs.
ZH15-R0, ZH15-R2, ZH15-R4. We can provide customized products according to customer’s requirements.
The brazed diamond grinding head applies to processing all kinds of cast iron, ductile iron edges and surface burrs, polishing holes, etc. High efficiency, long lifetime and durability, minimal dust and noise, the best choice to replace common resin and ceramics abrasives grinding head tool.
| Specification | Workpiece | Worlpiece material | Parameter |
Lifetime |
| ZH15-R2 | Cast iron shell | Gray iron | RPM 10000 | 2-3 days |
| Resin grinding head | Cast iron shell | Gray iron | RPM 10000 | 0.5 hours |
| Specification | Size | RPM | Applicable object |
| ZH15-R2 | 60*15*6*R2 | 10000 | Cast iron |
| ZH15-R4 | 60*15*6*R4 | 10000 | Cast iron |
| ZH15-R0 | 60*15*6*R0 | 10000 | Cast iron |
