Vacuum Brazing is a material joining process that directly bonds diamond to the blade. Based on the whole industrial technology advantages from raw materials to mature tools, UHD brazed tools, with superhard grits brazed on the base surface can make the abrasives work directly to the subject, more and higher edges improve working efficiency. Meanwhile, mature brazing technology makes the grits tightly combined with the base. Compared to traditional resin bond tools, UHD brazed tools have higher efficiency, longer work life, higher precision, better safety, and can lighten labor intensity, improve the working environment.

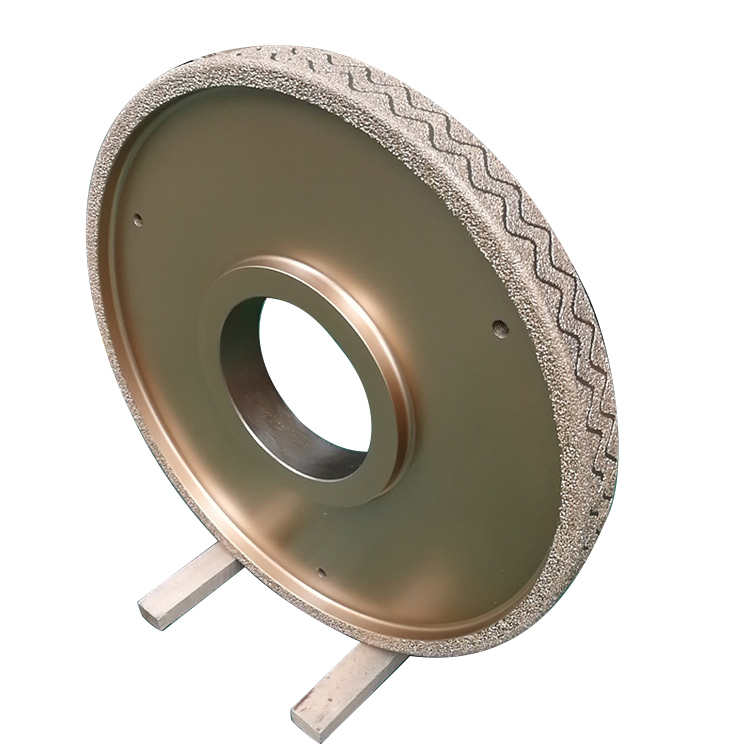

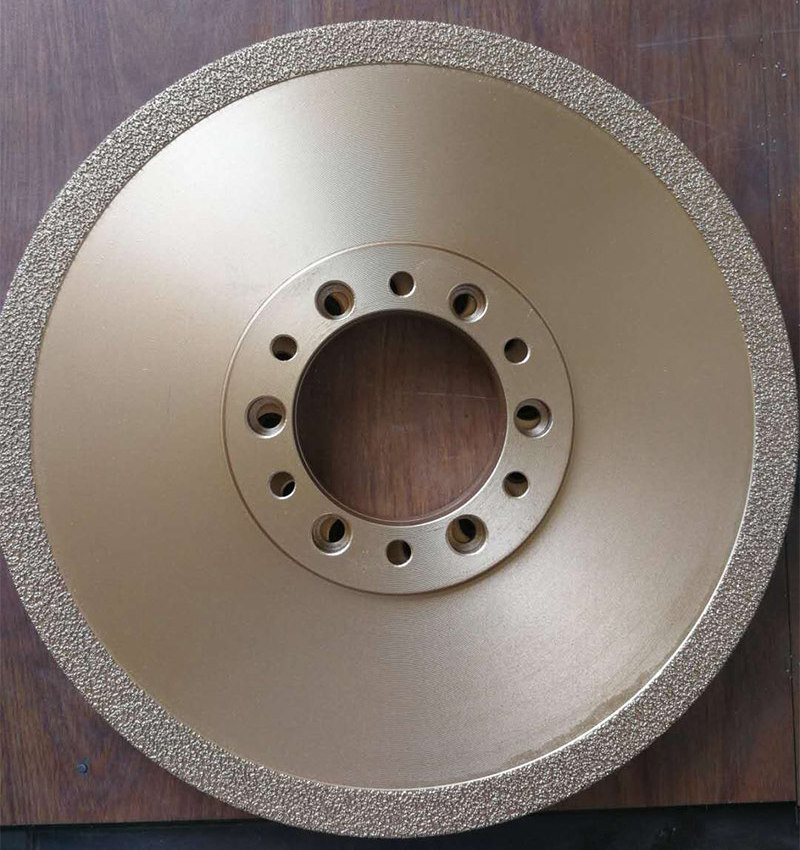

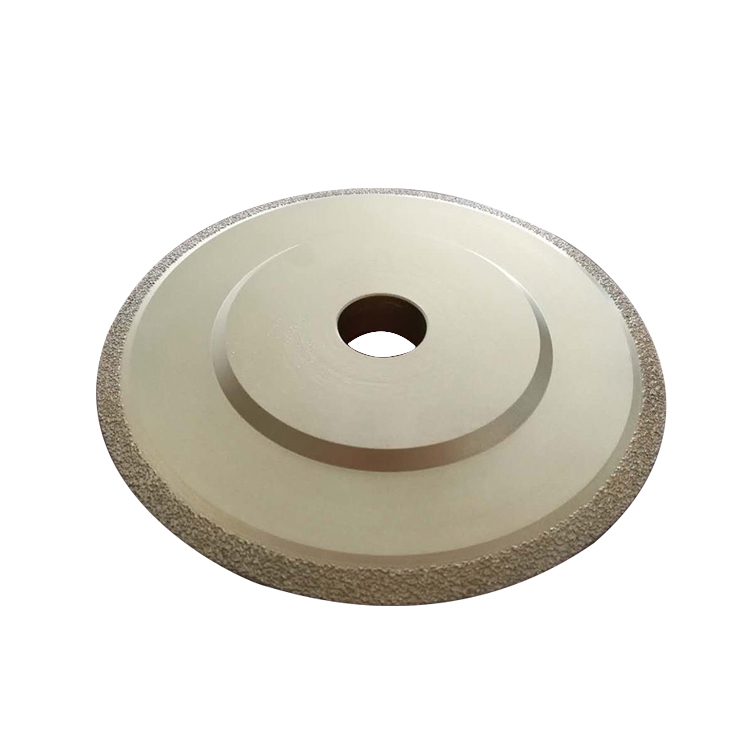

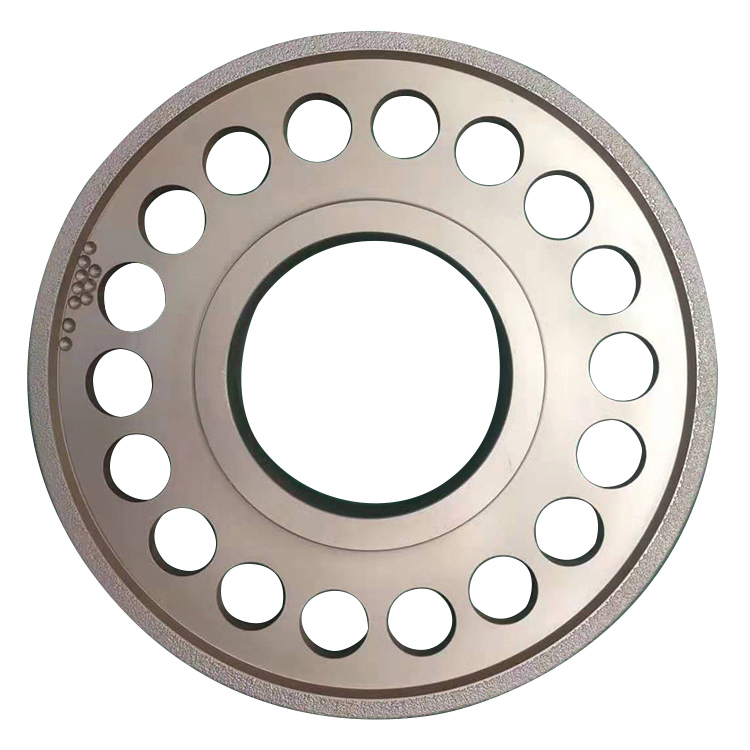

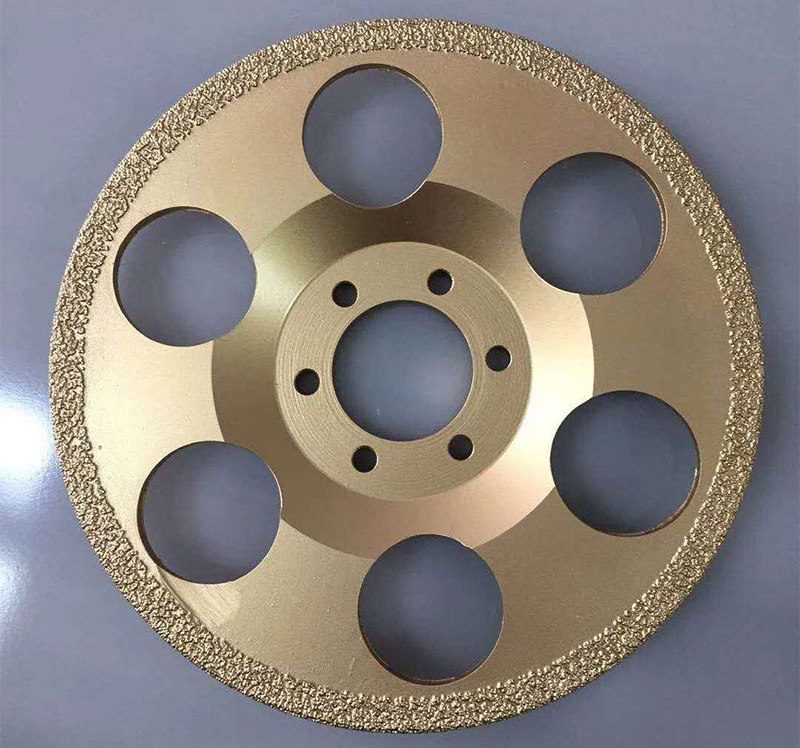

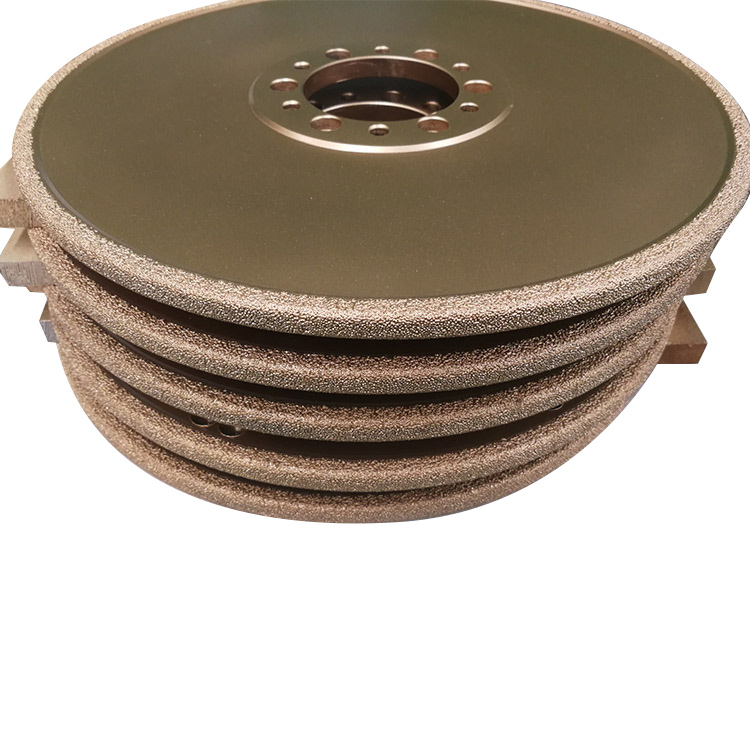

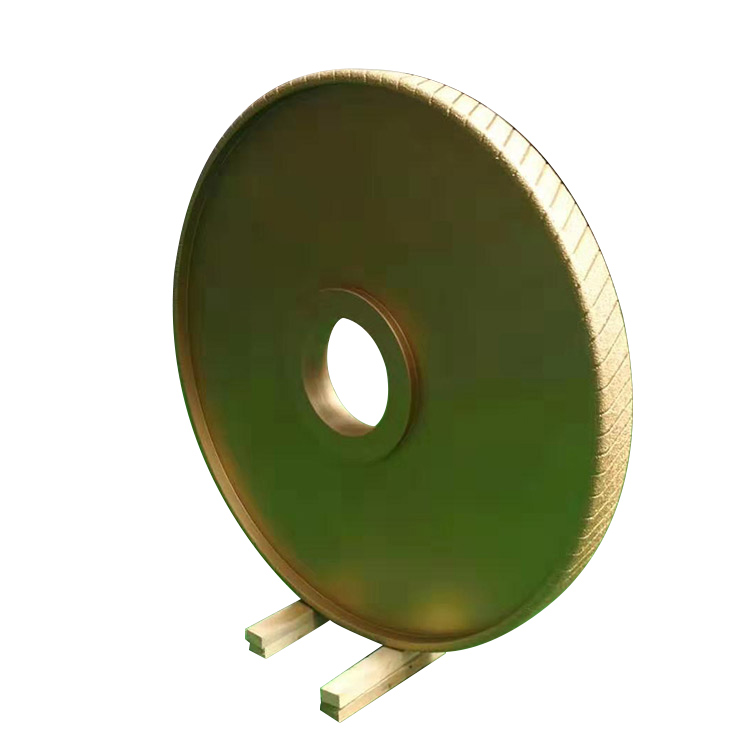

Vacuum brazed diamond wheels are suitable for multi-axial grinding equipment, UHD brazed diamond grinding wheel has higher efficiency and longer working life,and is better upgrading and replacement to electroplate diamond wheel.
UHD diamond wheel is used to high power and high rotation speed grinding machines, for burr removal of gray iron and ductile iron. With high grinding efficiency, long working life, minimal dust and odor; dimension maintenance, and safety, it is the best upgrade and replacement to resin bond and ceramic-bond wheels.
ZW150, ZW250, ZW300, ZW350, ZW400, ZW400, ZW500, ZW600
(for hand grinding)
ZW255, ZW305, ZW355, ZW405, ZW455
(for automatic grinding)
Apply to processing all kinds of cast iron, ductile iron edges and burrs, polishing, etc. High efficiency, long lifetime and durability, minimal odor and dust, diameter no reduction, safety and environmentally friendly advantages.

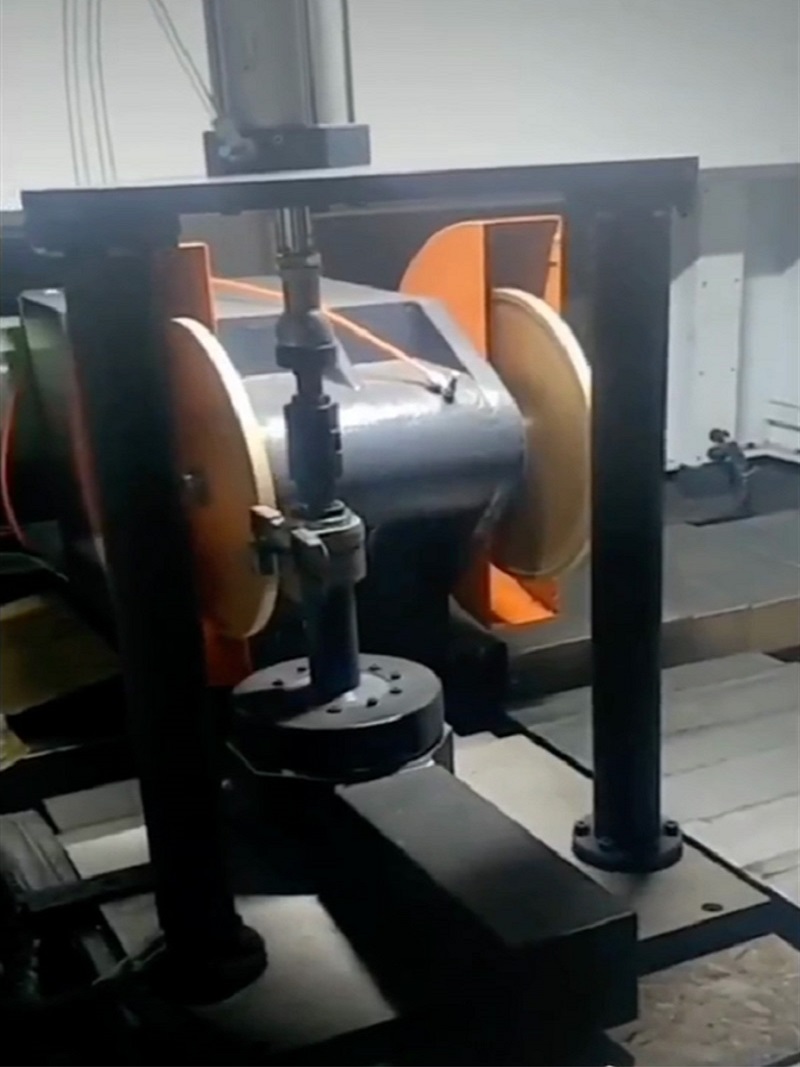

Automatic Grinding:
| Specification | Workpiece&Material | Parameter | Lifetime |
| ZW355 | Manifold
& ductile iron 550 |
RPM4200 | 2 months |
| Item 1 (other brand) | Manifold
& ductile iron 550 |
RPM4200 | 1 month |
| Item 2 (electroplated tool） | Manifold
& ductile iron 550 |
RPM4200 | 1.5 months |
| Specification | Size | RPM | Applicable object |
| ZW455 | 455*12*80 | 4600 | Cast iron |
| ZW405 | 405*12*80 | 4600 | Cast iron |
| ZW355 | 355*8/12*80 | 5400 | Cast iron |
| ZW305 | 305*8/12*80 | 6600 | Cast iron |
| ZW255 | 255*8/12*80 | 6600 | Cast iron |
| ZW600 | 600*40*203.2 | 2800 | Cast iron |
| ZW500 | 500*40*127 | 3600 | Cast iron |
| ZW400 | 400*40*127/50 | 4000 | Cast iron, cast steel |
| ZW350 | 350*40*75 | 4200 | Cast iron |
| ZW300 | 300*40*75 | 4600 | Cast iron |
| ZW250 | 250*25*32 | 4600 | Cast iron |
| ZW150 | 150*25*32 | 4600 | Cast iron |
