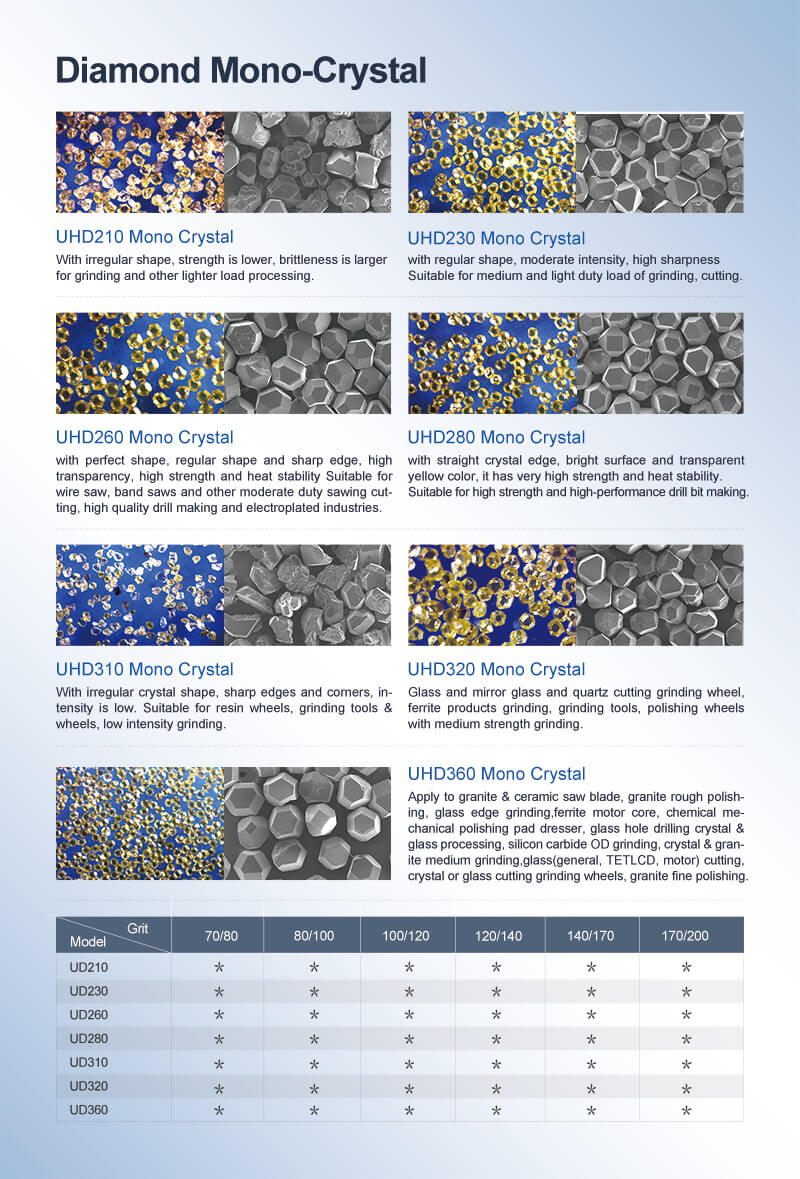

Classification Of Diamond Mono-Crystal:

One type with the grit size from 30/35 to 60/70, High-grade coarse particles synthetic diamond products with advanced quality detection system in China, which is widely used for diamond saw cutting fields.
Our corresponding product types are: UHD210, UHD230, UHD260, UHD280.
The second type with grit size from 70/80 to 170/200, Including Medium grade and High-grade diamonds, is widely used for all kinds of grinding wheels and tools with a strict requirement for sharpness and strength.
Our corresponding product types are UHD310, UHD320, UHD360.

Application Fields Of Diamond Mono-Crystal:

1.Mechanical processing industry
The Diamond abrasive tool is a special tool for grinding cemented carbide. When sharpening a cemented carbide turning tool, every 1g of metal needs to consume 4-15g of GC abrasive, while diamond only consumes 2-4mg.
2.Electronic and electrical industry
Hard and brittle precious semiconductor materials, such as silicon, germanium, gallium arsenide, etc., to be made into small pieces of semiconductor devices require cutting and grinding. At present, the most suitable method uses diamond cutting saw blade processing. Polishing semiconductor materials with diamond paste not only has high efficiency but also can reach the highest level of surface roughness Ra0.006um.
3.Optical glass and gem processing industry
In the past, silicon carbide was used to process optical glass, which had low efficiency and poor working conditions. Now all diamond grinding tools are used for processing, including blanking, nesting, cutting, edging, and fine grinding of convex and concave surfaces.
4.Drilling and mining industry
Diamond drill bits are widely used in the drilling and mining of petroleum, coal, metallurgy, and geological exploration.
5.Construction and Building Materials Industry
Diamond tools are widely used in the cutting and grinding of marble, granite, artificial cast stone, and concrete building materials.
