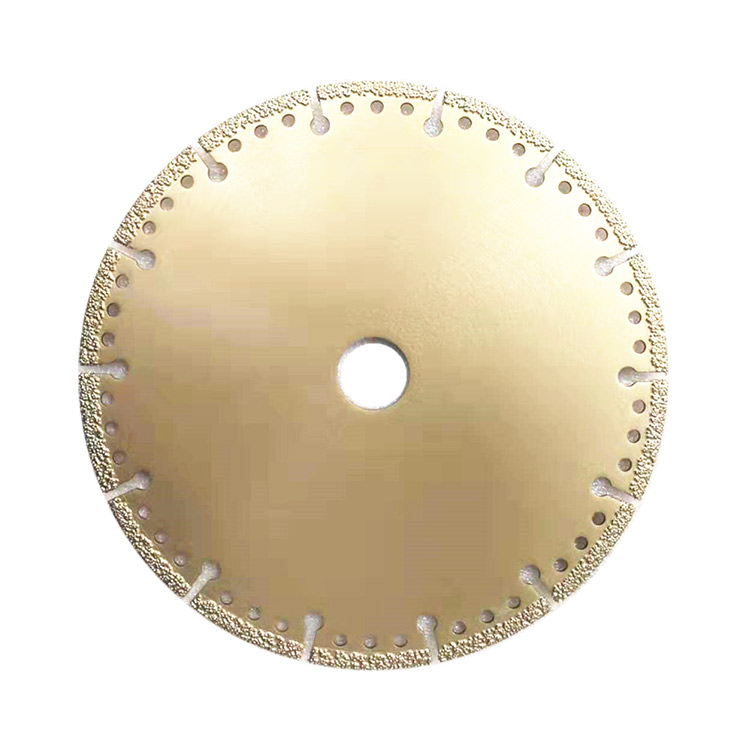

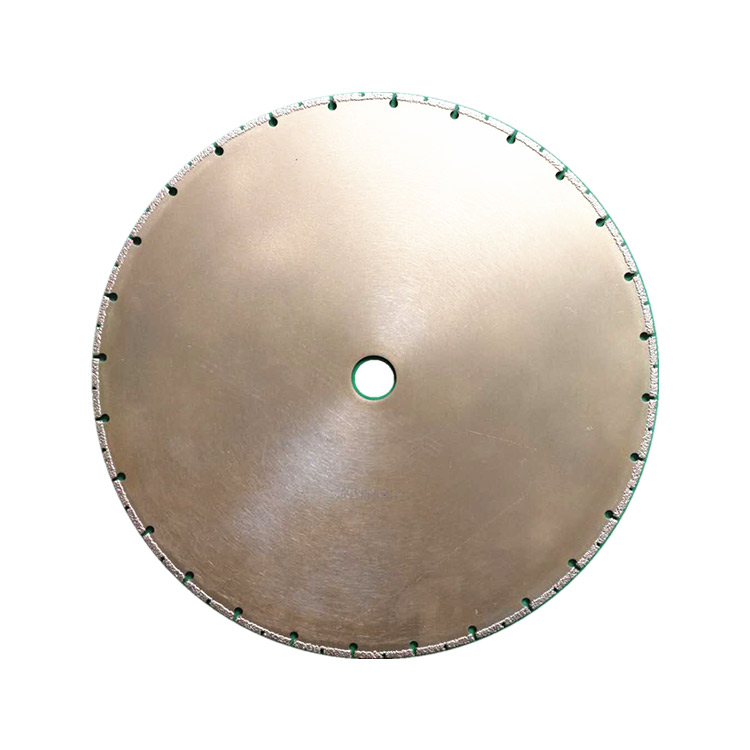

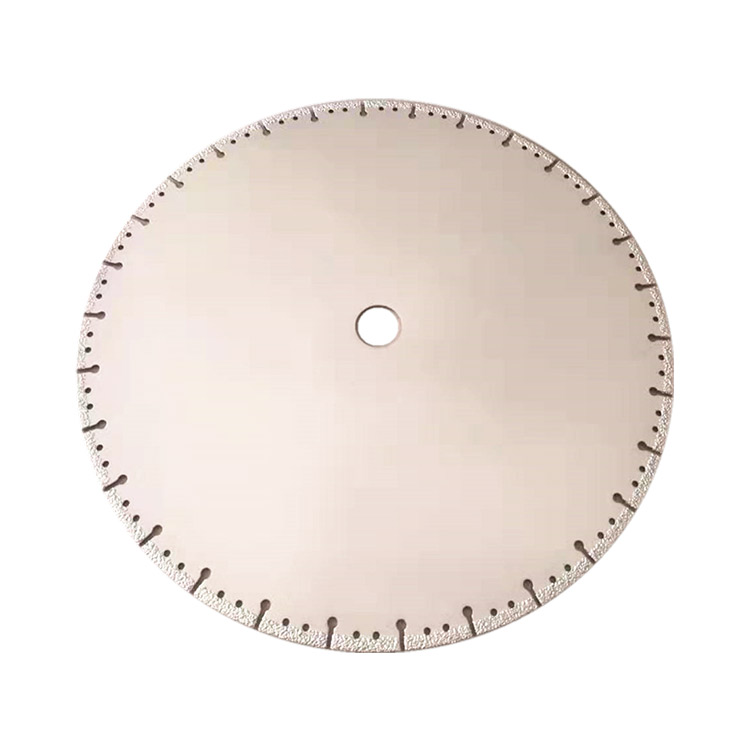

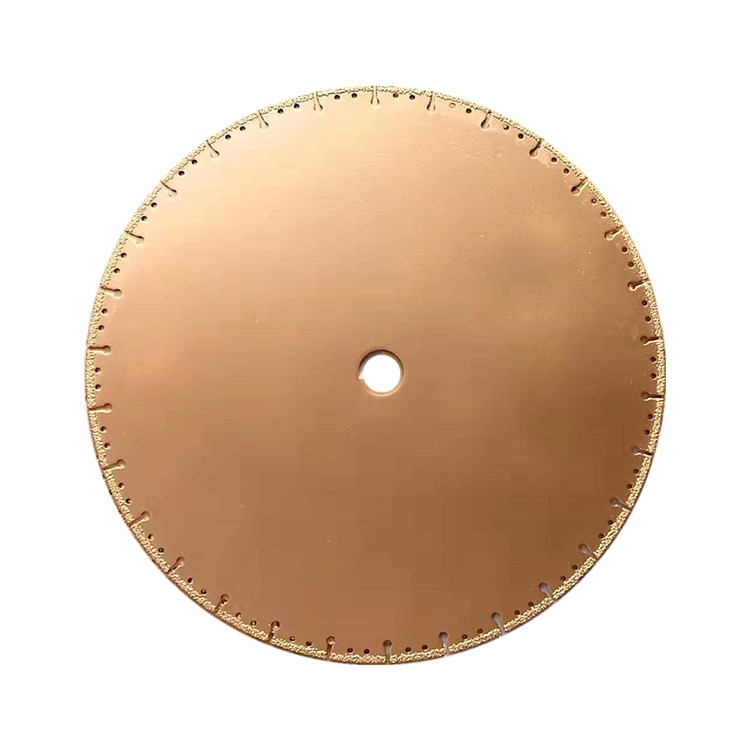

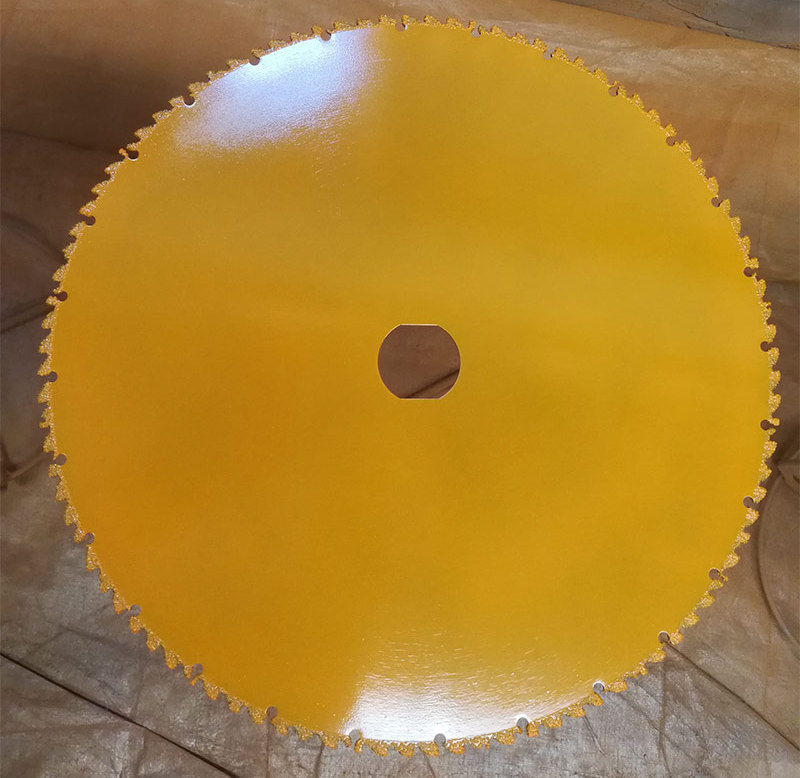

Vacuum Brazing is a material joining process that directly bonds diamond to the blade. The diamond brazed saw blade adopts diamond surface metallization technology and uses active brazing filler metal or nickel-based brazing filler metal to weld the diamond. Through strong carbides to form elements or alloys, the metallurgical and chemical combination of diamond and tool matrix is achieved, which greatly improves the holding power of diamond.

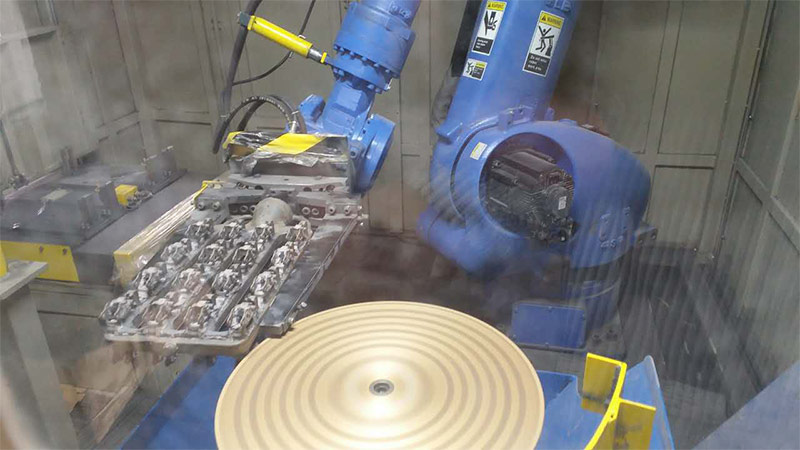

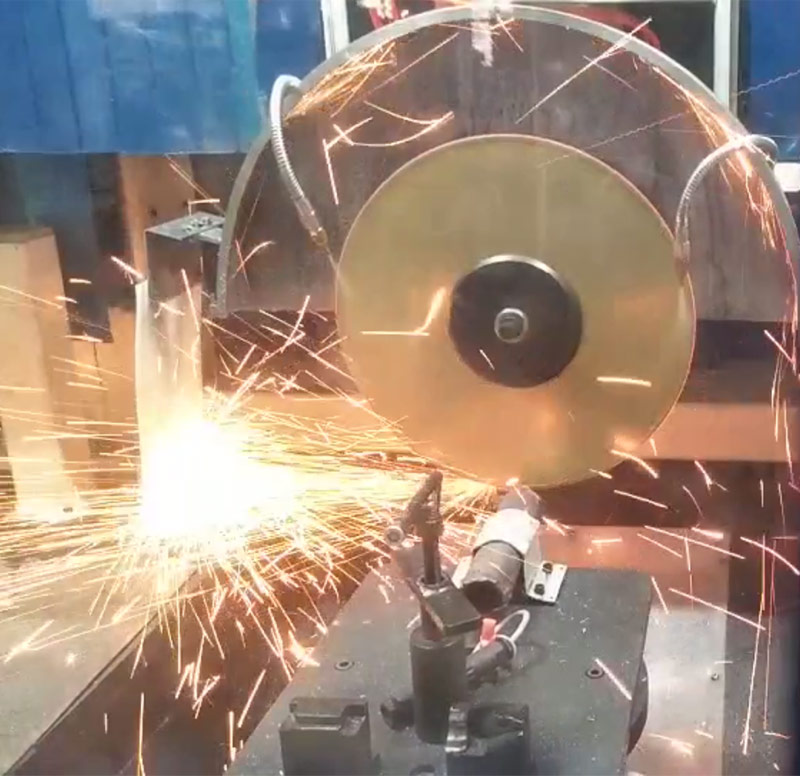

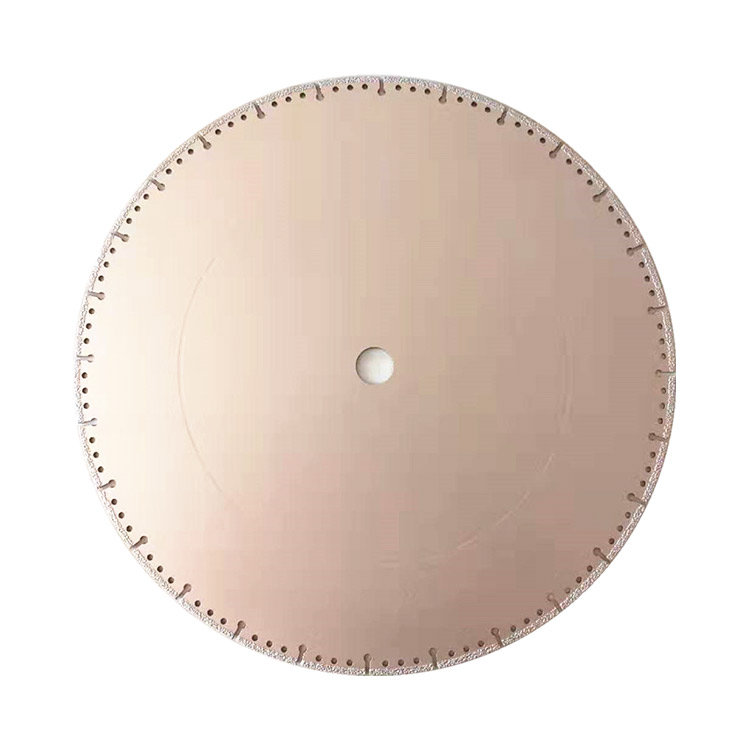

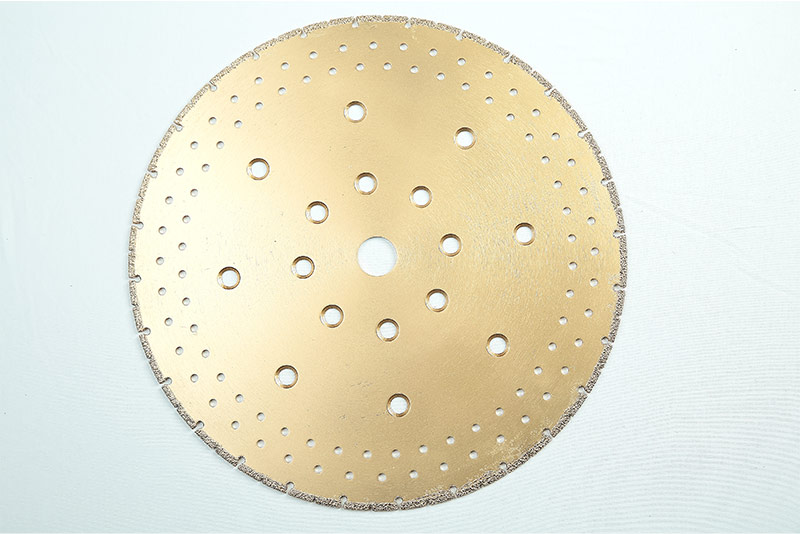

UHD diamond saw blade is suitable for high power and high rotation speed automatic cutting equipment, with long working life, low replacement frequency, and better safety. The blade can fully play the advantage of automatic cutting equipment, therefore reduce labor costs and ensure personal safety.
UHD diamond saw blade is used for cutting gray iron 250, 400 and nodular iron 450, 550, 600, applied to the cutting machine used by most foundry enterprises, and forcible entry units. UHD saw blade has lasting sharpness and long processing life, which greatly improves the product cost performance and reduces the processing cost for foundry enterprises.
ZS500, ZS450, ZS400, ZS350, ZS300, ZS300, ZS250, ZS230, ZS180, ZS100

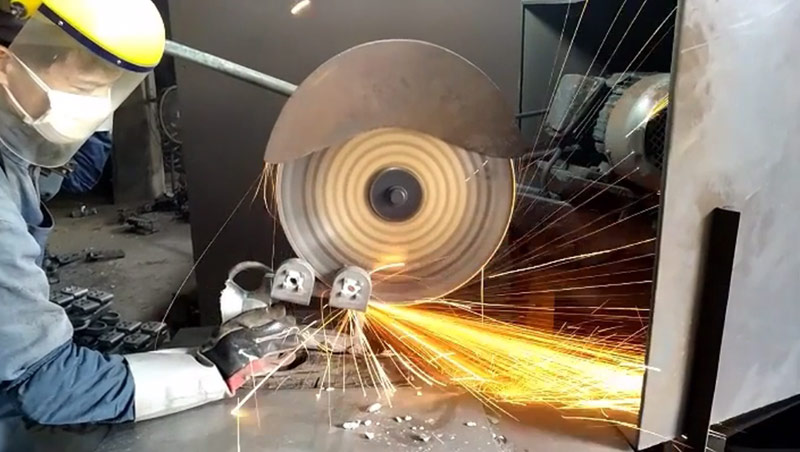

Apply to cast iron, nodular cast iron such as hard and brittle metal materials, such as big castings, cast iron/steel pipe, cast steel, etc. Sharp cutting performance, long lifetime and durable, high efficiency, noise reduction, together with the environmentally friendly advantages of minimal dust & odor and size retaining.
| Case 1 | ||||
| Specification | Wokrpiece | Workpiece material | Parameter | Cutting quantity |
| ZS400/80 | volute | Cast steel 1.4849 | RPM3600, feed 6mm/s | 270pcs |
| Other brand 1 | volute | Cast steel 1.4849 | RPM3600, feed 6mm/s | 130pcs |
| Other brand 2 | volute | Cast steel 1.4849 | RPM3600, feed 6mm/s | 200pcs |
| Specification | Size | RPM | Applicable object |
| ZS600M16 | 600*5.0*32 | 2800 | Cast steel, cast iron |
| ZS500M45 | 500*3.3*45 | 3400 | Cast steel, cast iron |
| ZS450 | 450*3.0*32 | 3600 | Cast steel, cast iron |
| ZS400M45 | 400*3.0*45 | 4000 | Cast steel, cast iron |
| ZS400M20 | 400*3.8*32 | 4000 | Cast steel, cast iron |
| ZS400/80 | 400*2.7*80 | 4000 | Cast steel, cast iron |
| Specification | Size | RPM | Applicable object |
| ZS500 | 500*3.0*32 | 3300 | Cast iron |
| ZS400M | 400*3.0*32 | 3600 | Cast iron |
| ZS400H | 400*2.7*32 | 3600 | Cast iron |
| ZS400 | 400*2.7*32/25.4 | 3600 | Cast iron |
| ZS350 | 350*2.5*32/25.4 | 3800 | Cast iron |
| ZS300 | 300*2.0*25.4 | 4000 | Cast iron |
| ZS250 | 250*1.8*25.4 | 5500 | Cast iron |
| ZS230 | 250*1.8*25.4 | 6600 | Cast iron |
| ZS180 | 180*1.6*22.23 | 8600 | Cast iron |
| ZS100 | 100*1.2*16 | 12000 | Cast iron |
